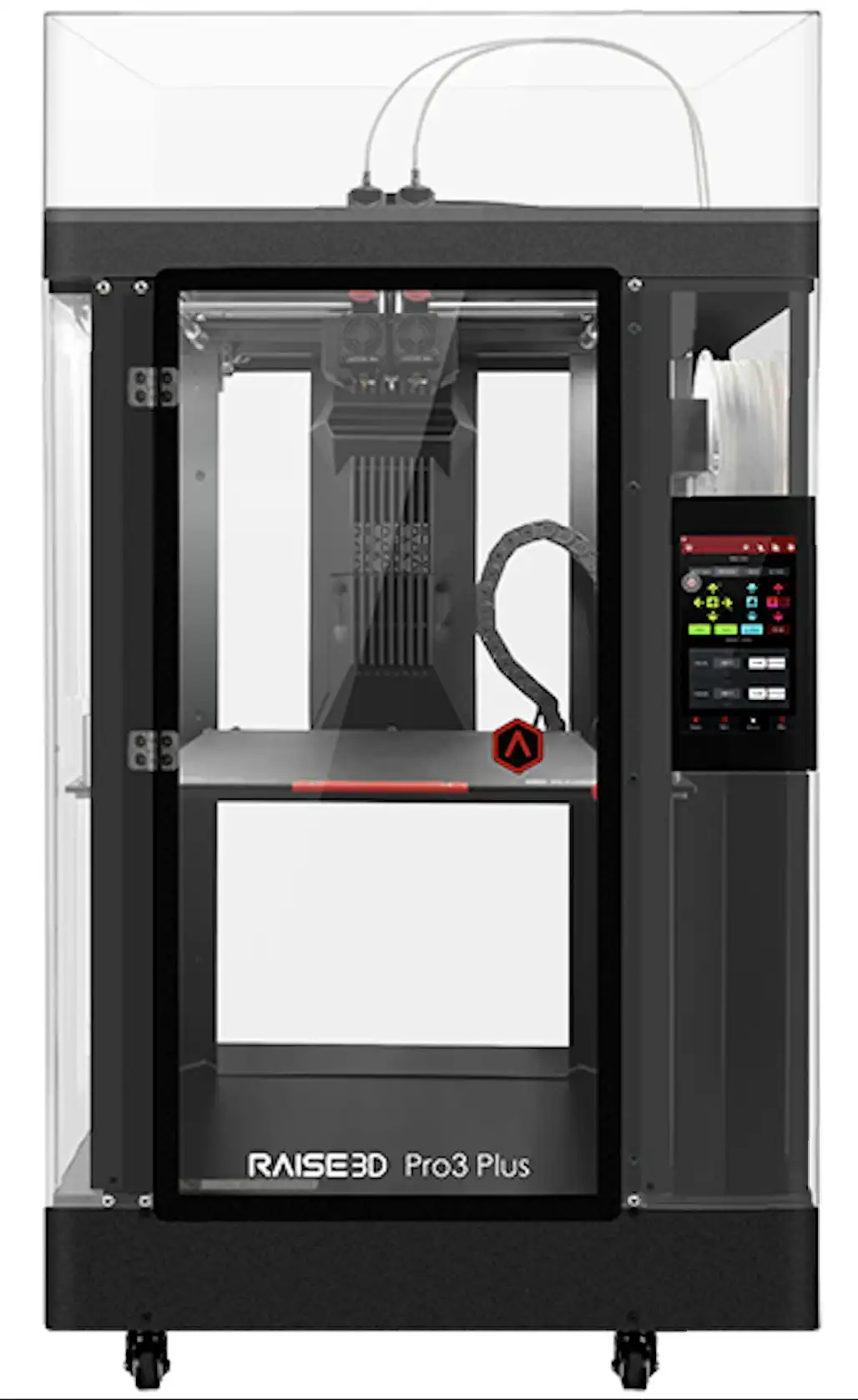

Raise3D Pro3 Plus HS — Professional Large Format High Speed 3D Printer
The Raise3D Pro3 Plus HS is a professional FDM 3D printer designed for industrial production, large prototyping, and end-use applications that require continuous reliability. With built-in Hyper FFF® technology, it reduces print time by 30% to 70% compared to previous Raise3D series, printing at a standard speed of 300 mm/s up to a maximum of 500 mm/s.
The “Extra Large” print volume of 300×300×605 mm in single extruder mode (255×300×605 mm in double extrusion) makes it one of the few professional desktop machines capable of producing very tall one-offs, fixtures and fixtures, or starting mass production of numerous vertically arranged components — a rare vertical space in the category of professional benchtop printers.
Continuous production and automatic filament change
The automatic filament change function is at the heart of the production efficiency of the Pro3 Plus HS: when a spool runs out, the printer automatically switches to the second extruder loaded with fresh material, allowing for uninterrupted production for up to 120 hours. With support for two spools of 2.5 kg each, the machine can print up to 5 kg of material in a single continuous cycle, without manual intervention.
Industrial precision with closed-loop motors
Closed-loop stepper motors constantly monitor the extruder’s position, eliminating the risk of “pitch loss” typical of traditional motors during high-speed printing — with a 27% reduction in noise. Dual-diaphragm couplings and an optimized axis structure further stabilize motion accuracy, while the high-flow hot-end with silicon carbide nozzle handles composite and loaded filaments with ease.
Industrial materials and controlled working environment
The Pro3 Plus HS is optimized for Hyper Core filaments (PPA GF25, PPA CF25, ABS CF15), which feature fast melting and cooling that improves strength and stiffness in the Z direction — a real advantage for final functional parts. The air filtration system with HEPA filter and activated carbon keeps the working environment clean, with noise emissions contained below 55 dB(A) during operation.
Technical specifications
| Technology | FFF (Fused Filament Fabrication) with Hyper FFF® |
| Head | Double extruder with electronic lifting |
| Build volume (single extruder) | 300 × 300 × 605 mm |
| Build volume (dual extruder) | 255 × 300 × 605 mm |
| Standard | 300 mm/s (up to 500 mm/s) |
| nozzle diameters | 0.2 / 0.4 / 0.6 / 0.8 / 1.0 mm |
| Layer | 0.05–0.6 mm |
| Maximum flat | 120°C |
| Flexible steel plate with BuildTak | |
| Leveling | Mesh-leveling with flatness detection |
| filament changeover | Yes, up to 120 hours of continuous production |
| Reel | 2 × 2.5 kg (up to 5 kg continuous) |
| Air | HEPA filter + activated carbon |
| Noise | Below 55 dB(A) |
| Connectivity | Wi-Fi, Ethernet, USB |
| Weight | Approx. 88-99 kg (depending on configuration) |
| Machine | 620 × 626 × 1105 mm |

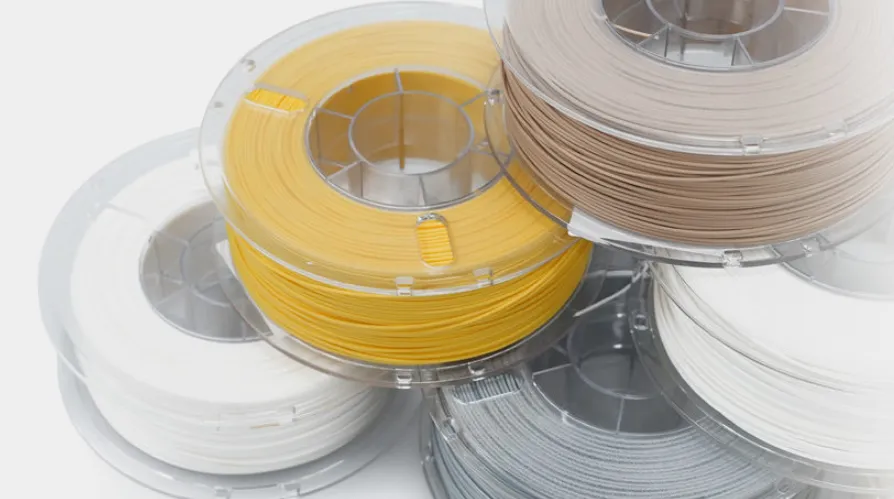

Compatible materials
- Hyper Core Filaments: PPA GF25, PPA CF25, ABS CF15
- High-performance engineering materials and composites
- Extensive third-party material support via Raise3D Open Filament Program (OFP)
Ideal applications
- Large industrial prototyping
- Production of fixtures, equipment and vertical molds
- Series production of durable end components
- Printing with filled composite materials (fiberglass/carbon)
- Production environments that require continuous operation H24
Why choose the Pro3 Plus HS
- XXL vertical print volume: 605mm high, rare in the desktop category
- Automatic filament changeover: up to 120 hours of production without intervention
- 30-70% reduction in print time thanks to Hyper FFF®
- Closed-loop motors: industrial precision, zero step loss
- HEPA air filtration + activated carbon for controlled working environment
- Compatible with engineering and composite materials thanks to silicon carbide nozzle
