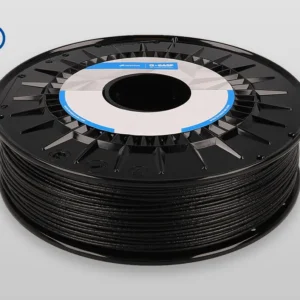

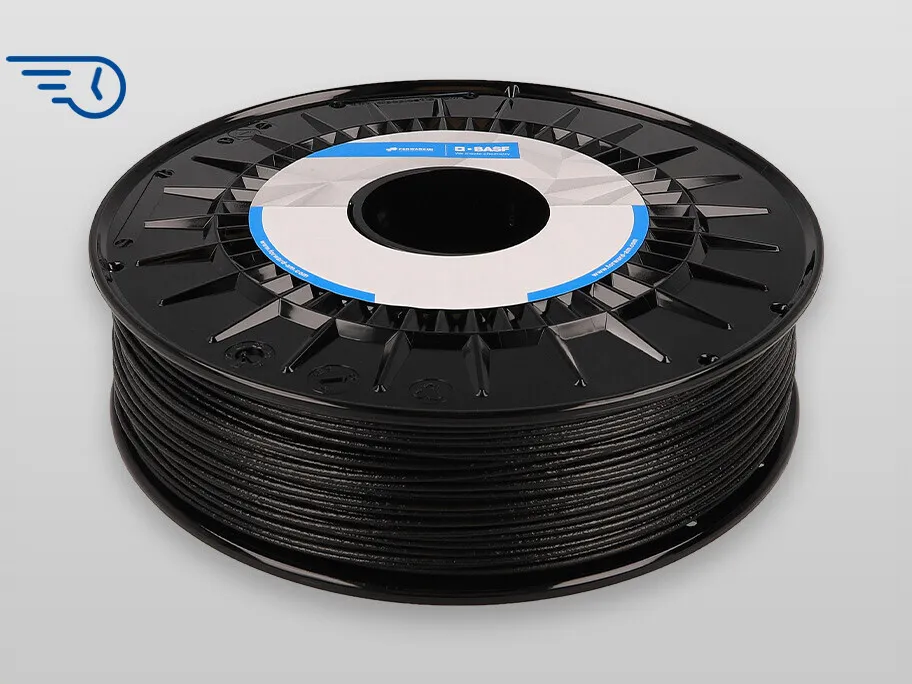

BASF Ultrafuse PAHT CF15
High Temperature PA with 15% Carbon Fiber
Ultrafuse PAHT CF15 is a high-performance 3D printing filament that opens up new application areas in FFF printing. It works in any FFF printer that has a hardened nozzle. In addition, it is compatible with BVOH, a water-soluble support material, and HIPS, which enables the printing of complex geometries for the most challenging operating environments.
This filament combines high-temperature and chemical resistance with exceptional mechanical resilience. Due to its excellent dimensional stability, the printed component will exhibit low shrinkage during printing, ensuring a simple printing experience. The nature of the fibers ensures that the parts remain very strong and highly rigid.
Benefits at a glance
- Higher chemical resistance than most PA grades
- High temperature resistance up to 150 °C
- Strong and rigid components
- High dimensional stability
- Easy to process
- Low moisture absorption
- ESD SAFE (Surface Resistivity 10^5-10^11 Ω)
Examples of Applications
- Complex geometries in challenging environments
- Automotive
Material Properties
| Properties | Value |
|---|---|
| Tensile Strength (MPa) | 18.2 (ZX), 103.2 (XY) |
| Modulus of Flexure (MPa) | 2715(ZX), 7669(XZ), 8258(XY) |
| Elongation at break (%) | 0.5 % (ZX), 1.8 % (XY) |
| Engraved Izod impact resistance (kJ/m2) | 5.1 (XZ), 4.9 (XY) |
| Unetched Izod impact resistance (kJ/m2) | 2.9 (ZX), 18.1 (XZ), 16.4 (XY) |
| HDT at 0.45 MPa (°C) | 145 |
Guidelines for Printing
| Parameter | Value |
|---|---|
| Nozzle | 250-270 °C |
| Build Chamber | – |
| Bed | 65 – 85 °C |
| Bed | Glass, PEI |
| Nozzle | ≥ 0.6 mm, Ruby or hardened |
| 30 – 80 mm/s |
