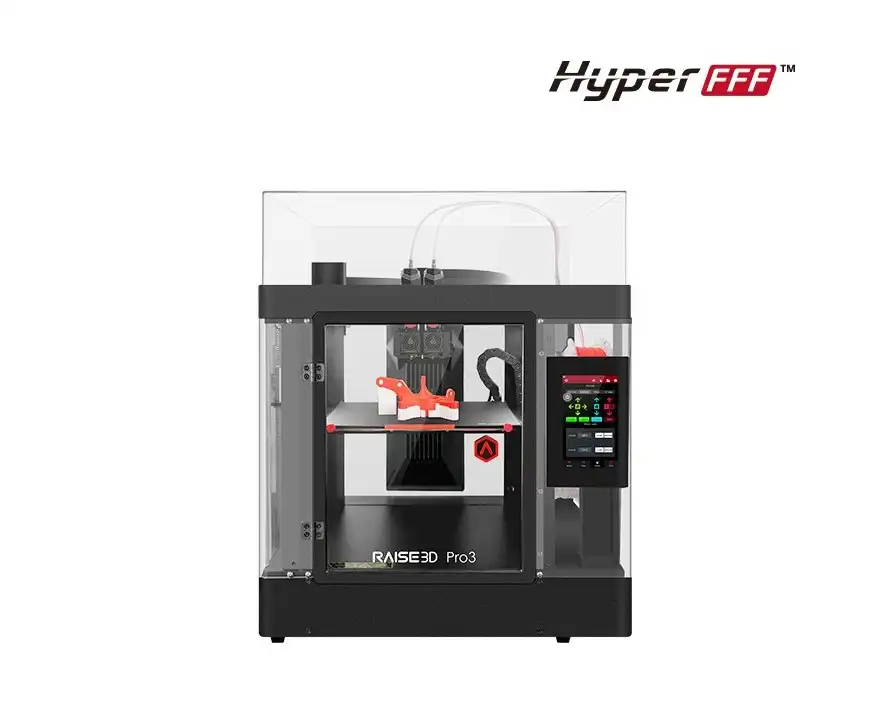

Raise3D Pro3 HS — Professional High Speed 3D Printer
The Raise3D Pro3 HS is a professional FDM 3D printer designed for those looking for production speeds without sacrificing industrial precision. With built-in Hyper FFF® technology, it reduces print time by 30% to 70% compared to previous Raise3D series, printing at a standard speed of 300 mm/s — a clear performance leap for those working on repeat orders or high-volume prototyping.
The build volume of 300×300×300 mm in single extruder mode (255×300×300 mm in double extrusion) offers enough space for most professional applications, from functional prototyping to small series production, in a more compact footprint than the vertical Plus version.
Industrial precision with closed-loop motors
Closed-loop stepper motors constantly monitor the extruder’s position, eliminating the risk of “step loss” typical of traditional motors during high-speed printing. Dual-diaphragm couplings and an optimized axis structure further stabilize motion accuracy, while the high-flow hot-end with silicon carbide nozzle handles composite and loaded filaments with ease, including a Hyper Core filament spool that comes standard.
Continuous production and automatic filament change
The automatic filament change function allows for uninterrupted production for up to 120 hours: when one spool runs out, the printer automatically switches to the second extruder loaded with fresh material. With support for two spools of 2.5 kg each, the Pro3 HS can print up to 5 kg of material in a single continuous run, without manual intervention — ideal for night shifts or unmanned production.
Technical materials and controlled working environment
The Pro3 HS is optimized for Hyper Core filaments (PPA GF25, PPA CF25, ABS CF15), which feature fast melting and cooling that improves strength and stiffness in the Z-direction for functional end parts. The air filtration system with HEPA filter and activated carbon keeps the work environment clean, with noise emissions contained below 55 dB(A) during operation — even in the office or in shared environments.
Technical specifications
| Technology | FFF (Fused Filament Fabrication) with Hyper FFF® |
| Head | Double extruder with electronic lifting |
| Build volume (single extruder) | 300 × 300 × 300 mm |
| Build volume (dual extruder) | 255 × 300 × 300 mm |
| Standard | 300 mm/s |
| nozzle diameters | 0.2 / 0.4 / 0.6 / 0.8 / 1.0 mm |
| XYZ | 0.78125 / 0.78125 / 0.078125 microns |
| Layer | 0.05–0.6 mm |
| filament changeover | Yes, up to 120 hours of continuous production |
| Reel | 2 × 2.5 kg (up to 5 kg continuous) |
| Air | HEPA filter + activated carbon |
| Noise | Below 55 dB(A) |
| Connectivity | Wi-Fi, Ethernet, USB |
| Weight | Approx. 54-75 kg (depending on configuration) |
| Machine | 620 × 626 × 760 mm |
Compatible materials
- Hyper Core Filaments: PPA GF25, PPA CF25, ABS CF15
- High-performance engineering materials and composites
- Extensive third-party material support via Raise3D Open Filament Program (OFP)
Ideal applications
- Rapid functional prototyping for product development teams
- Production of small series and final components
- Printing with filled composite materials (fiberglass/carbon)
- Production environments that require long, unattended print cycles
- Technical offices and laboratories with limited space compared to the Plus version
Why choose the Pro3 HS
- 30-70% reduction in print time thanks to Hyper FFF®
- Automatic filament changeover: up to 120 hours of production without intervention
- Closed-loop motors: industrial precision, zero step loss
- More compact footprint than the Plus, same Hyper FFF® technology
- HEPA air filtration + activated carbon for controlled working environment
