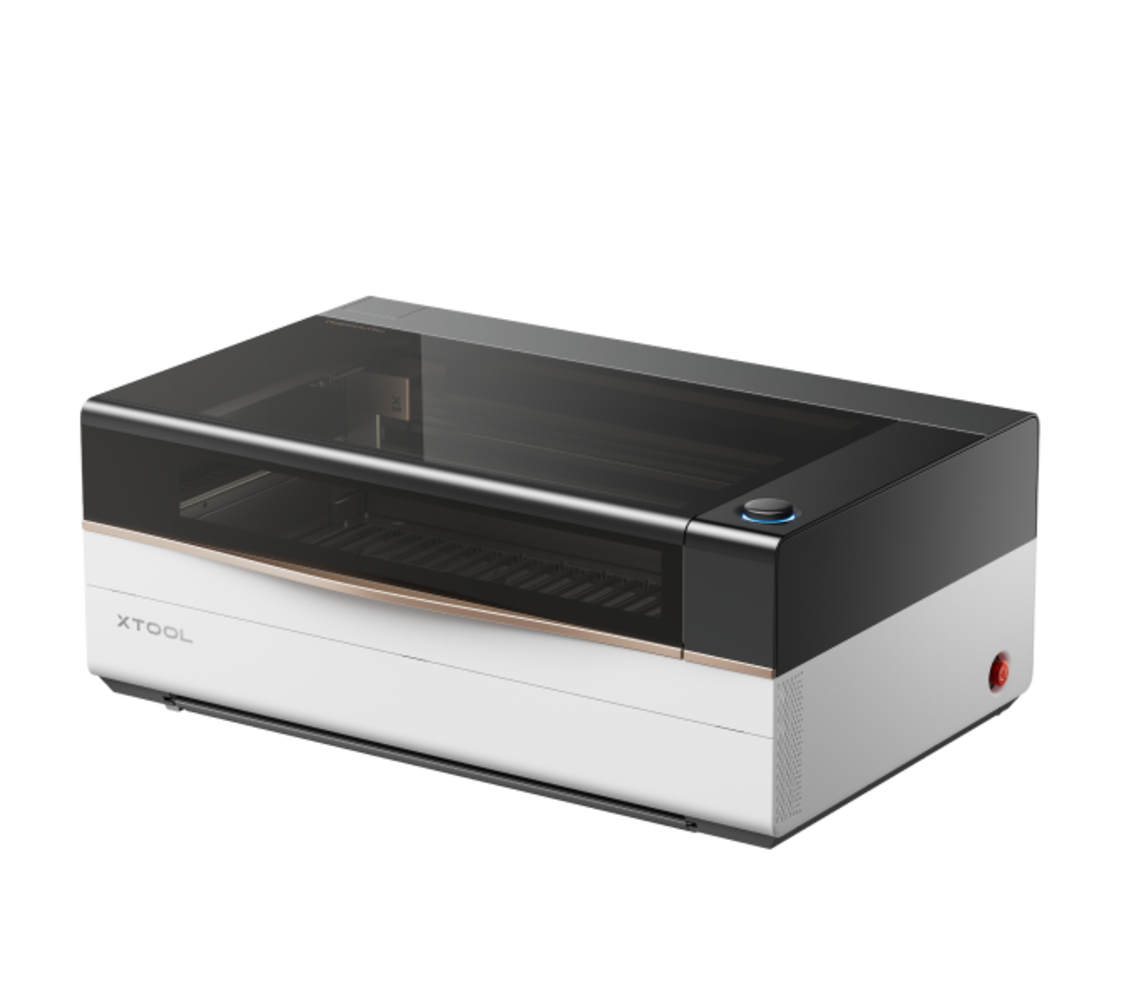

xTool P3 80W — Professional High Speed CO2 Laser
The xTool P3 80W is the flagship CO2 laser in the xTool range, designed for those who have pushed the limits of a desktop laser and are looking for semi-professional power, speed and automation. With an 80W CO2 tube, a working area of 914×457 mm — 2.3 times larger than its predecessor P2S — and a maximum speed of 1200 mm/s, the P3 cuts up to 20 mm of solid wood and 25 mm of acrylic in a single pass, tackling thicknesses and materials that a diode laser simply cannot process.
Unlike entry-level diode lasers, the P3 uses a 10,600 nm CO2 tube, the only technology that can cut clear acrylic with clean edges and without excessive charring. It is the best choice for small labs, product customization tasks, signage, and those who work in batches on wood, leather, fabric, and acrylic.
Intelligent automation: the ACSâ„¢ system
The real leap over traditional CO2 lasers is the “position and go” workflow: the ACSâ„¢ system combines auto-positioning via dual HD cameras (16MP), autofocus, LiDAR telemetry and an AutoLift motorized base that automatically adjusts the height up to 220 mm — eliminating manual focus calculations and drastically reducing setup waste. The 4-camera vision system also ensures complete safety monitoring during processing.
Security and productivity

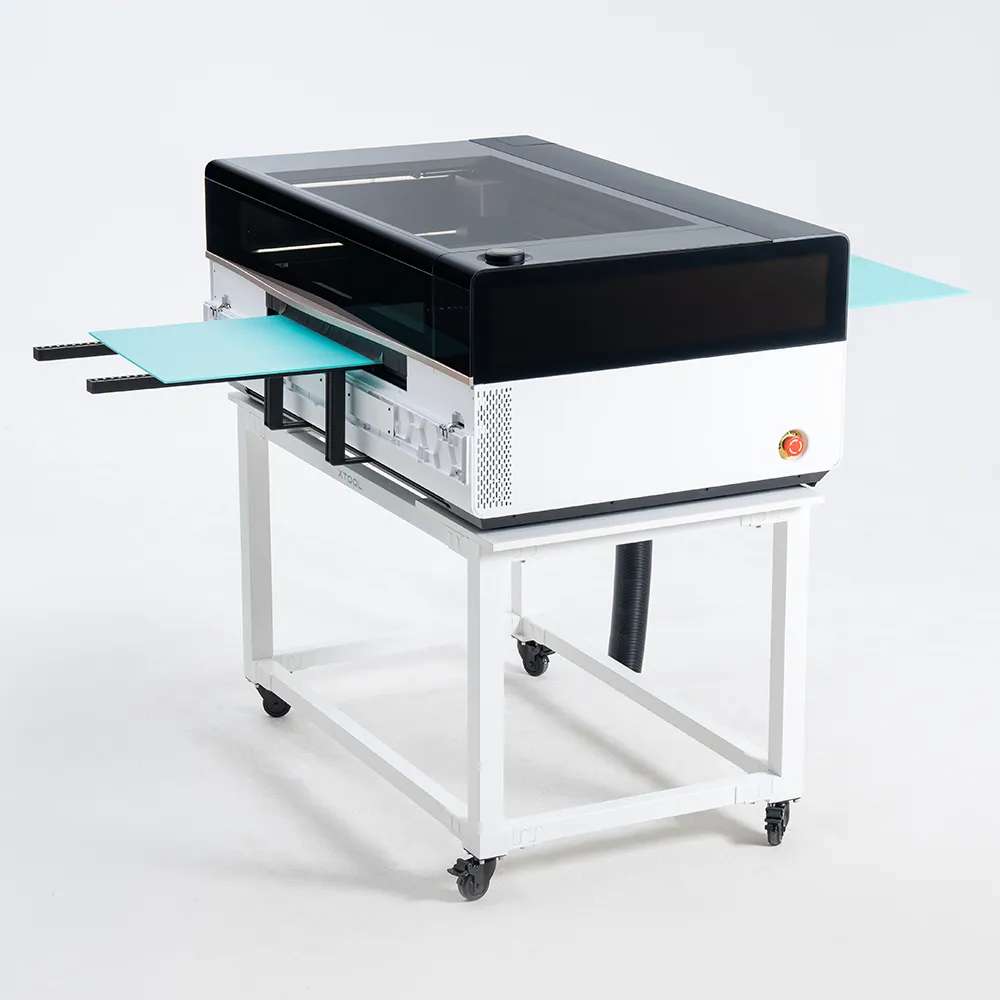

Despite its industrial power, the P3 retains Class 1 safety certification, thanks to a fully enclosed enclosure with active detection and shutdown in the event of a fire — no laser goggles required. The optional automatic conveyor belt and RA3 rotary accessory with 3D mapping allow you to scale production to batches and cylindrical parts without changing machines.
Technical specifications
| Laser | CO2 80W (10,600 nm) + optional 5W IR module (metal marking) |
| Processing | Laser cutting and engraving |
| Working area | 914 × 457 mm |
| Maximum | 1200 mm/s |
| Wood cutting (one pass) | Up to 20 mm |
| Acrylic cutting (one pass) | Up to 25 mm |
| Maximum material | 220 mm (AutoLift base) |
| Maximum | 200 mm (with RA3 accessory) |
| Camera | 4 cameras (16MP overhead + close-up detail) |
| Positioning | 0.2 mm (chamber) |
| Autofocus / Ranging | Automatic LiDAR |
| Laser tube | Approximately 10,000 hours |
| Safety | Class 1 |
| Software | xTool Studio |
| Weight Approx | . 105 kg |
Machinable materials
- Cut: Wood, Acrylic, Fabric, Leather More
- Engraving: metal, glass, bamboo, ceramics and more
Ideal applications
- Cutting and engraving on panels and signs
- Customization of small series products
- Professional signage and license plates
- Batch production of wooden, acrylic or leather items
- Creative labs, retail and merchandising
Why choose the P3
- 80W CO2 laser: cut 20mm of wood and 25mm of acrylic in one pass
- 914×457 mm working area, among the largest in the desktop category
- ACSâ„¢ automation: no more manual focusing or positioning
- Safety Class 1, no safety goggles required
- Expandable with conveyor belt and rotary accessory for series production
